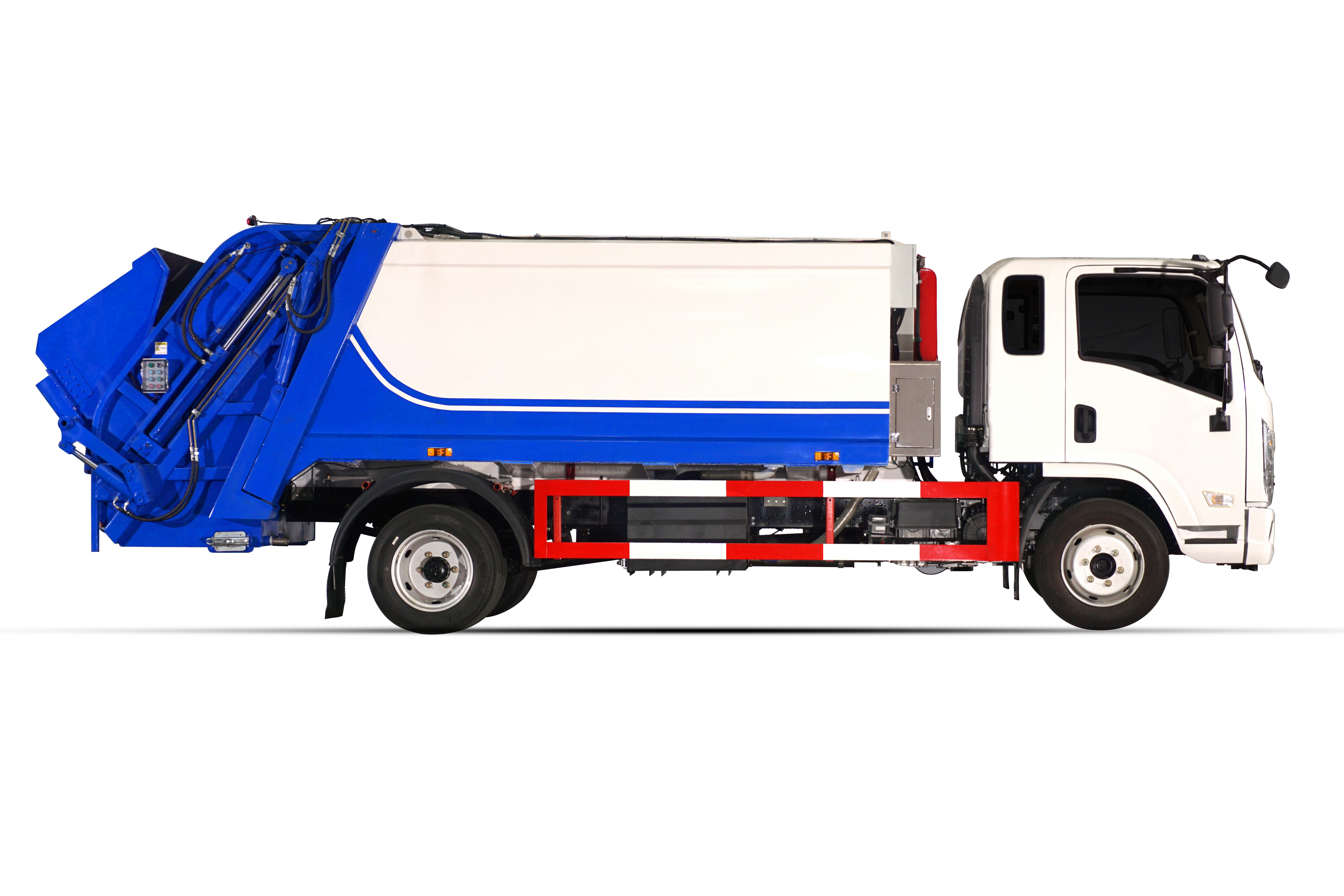

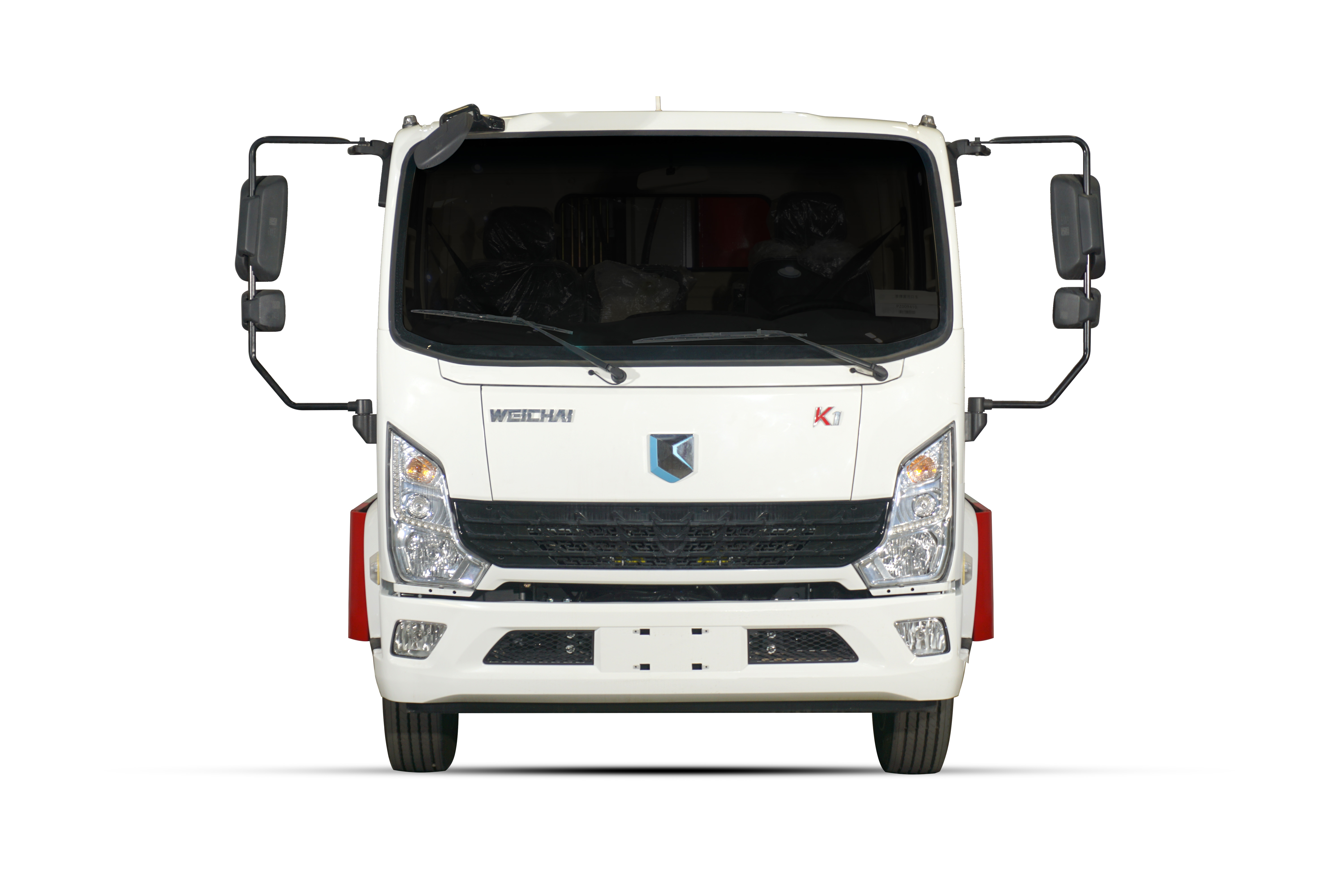

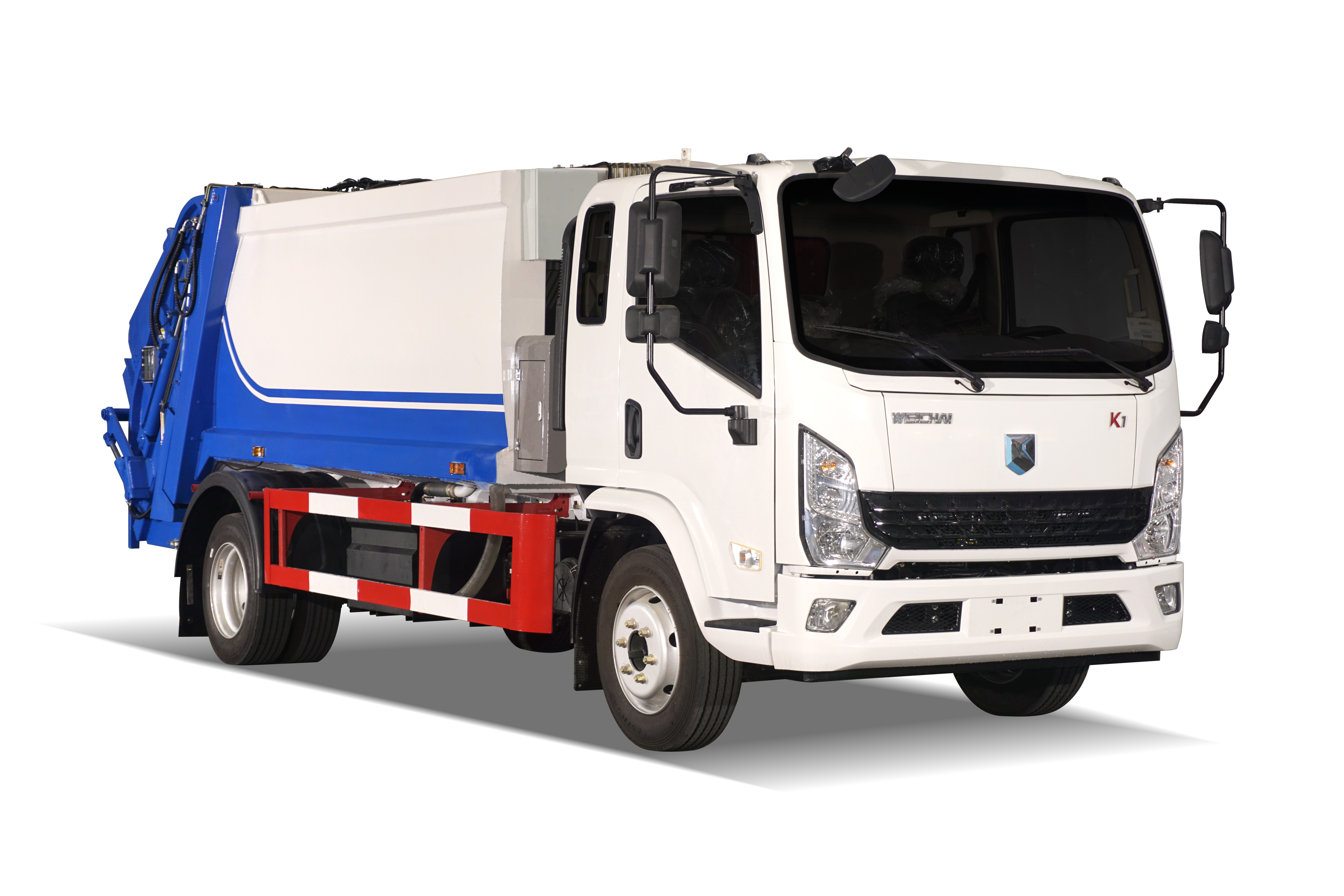

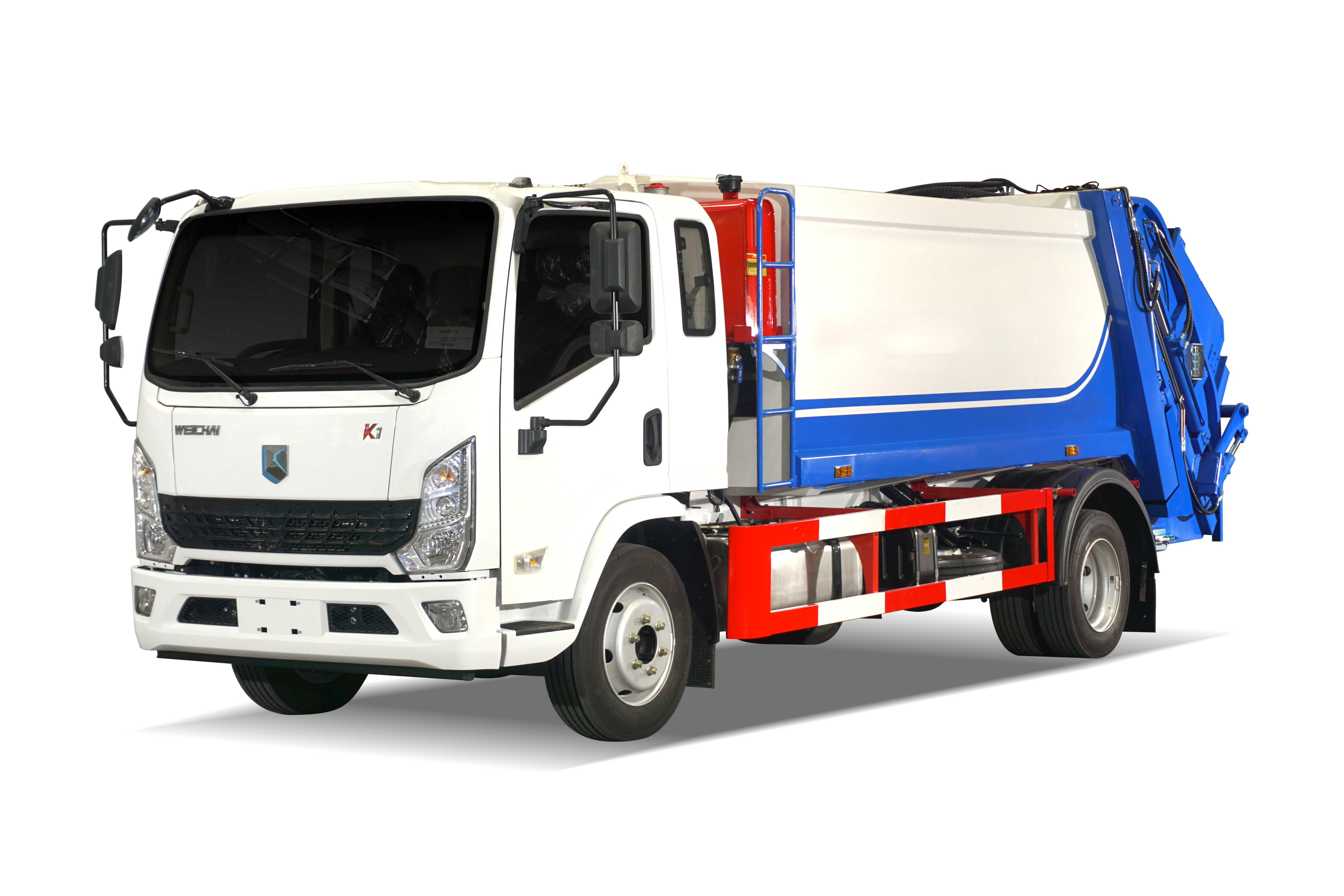

WEICHAI GARBAGE COMPACTOR 10CBM

SPECIFICATION

DIMENSIONS Wheelbase (mm) 4200
Length (mm) 7465
Width (mm) 1995(without rear mirror)
Height (mm) 2420
VEHICLE MASS Curb Weight (kg) 4000
Loading capacity (Kg) 8000
Full load weight (Kg) 12000
VEHICLE PERFORMANCE Maximum speed (Km/h) 110
CARGO BODY 10 CBM
CAB Body type Single and half row
Persons in cab(persons) 3
ENGINE Model WP3NQ160E30 Euro 5
Type In-line, four-cylinder, four-stroke, turbocharging
intercooling, diesel engine, electronic-controlled
high pressure common rail, 16 engine valves
Displacement (L) 3.0
Max power (ps/rpm) 118(3000)
Max torque (Nm/rpm) 480
Brand WEICHAI
Emission Euro 5
CLUTCH Type Dry type, Diaphragm spring
Plate diameter ⌀ 325
GEAR BOX Model C6J50T
Brand Fast
BRAKE SYSTEM Service brake Double circuit pneumatic brake
Parking brake Spring energy storage air brake
Auxiliary brake Exhausted assisted braking
SUSPENSION Front suspension/leaf spring number Vertical steel plate spring + two way
cylindrical shock absorber. 10
Rear suspension/leaf spring number Vertical steel plate spring + two way
cylindrical shock absorber. 9+7
FRONT AXLE Rated load 2.4T HANDE axle
Brake type Drum
REAR AXLE Model 7T HANDE axle
Rated load/gear ratio 4.875
Brake type Drum brake
TYRE Quantity 6+1
Size 245/70R19.5
FUEL TANK Cubage and material 200L
ELECTRICAL SYSTEM Rated voltage 24V
CONFIGURATION A/C ⬤
Comfort fabric seat ⬤
Electric door and window ⬤
Airbag seat ⬤
7-inch color LCD combination instrument ⬤
Rear view mirror 〇
ABS ⬤
Cab manual tilt ⬤
Mp3+Radio+USB ⬤
Standard steering wheel ⬤
Daytime running light ⬤
PTO ⬤
