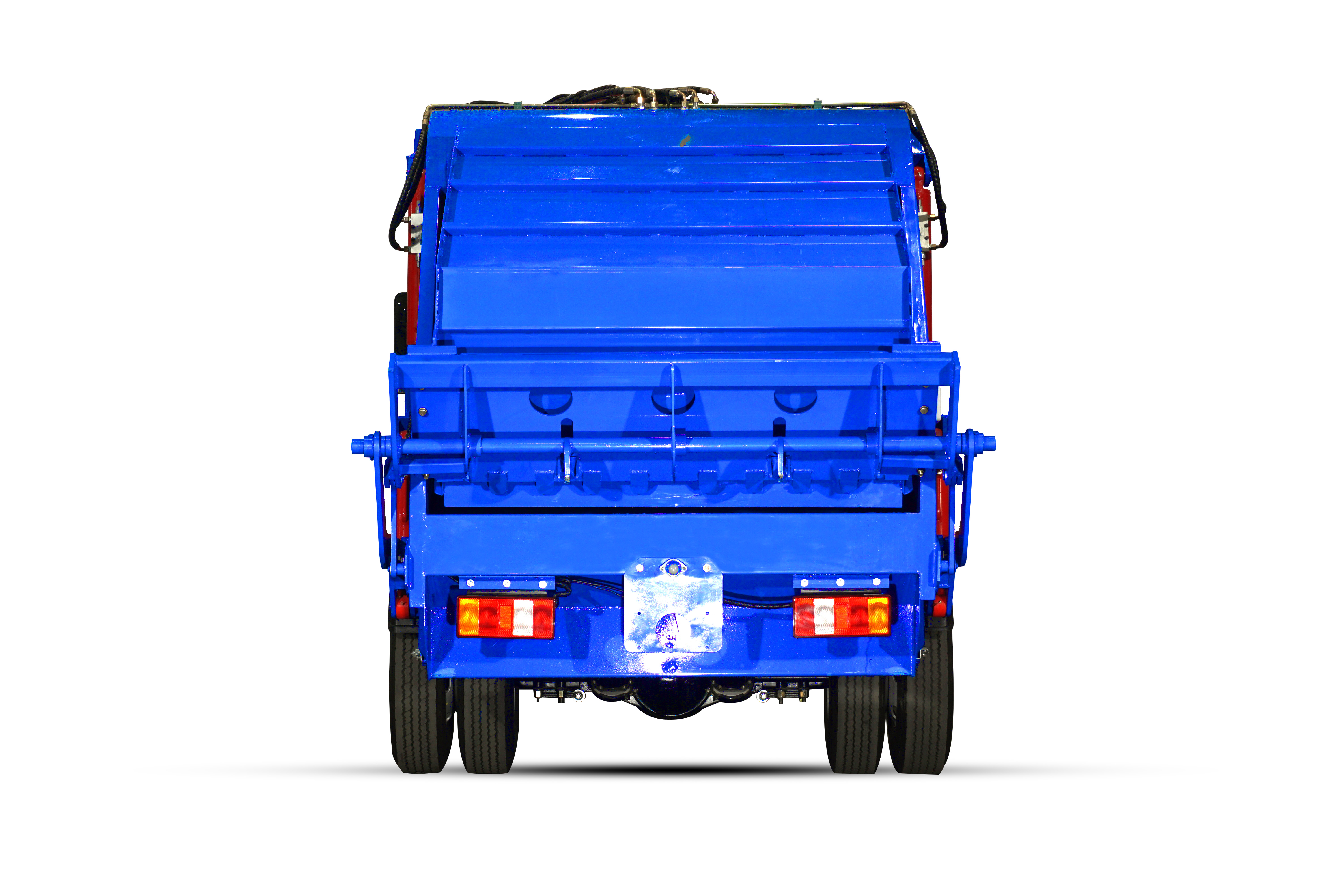

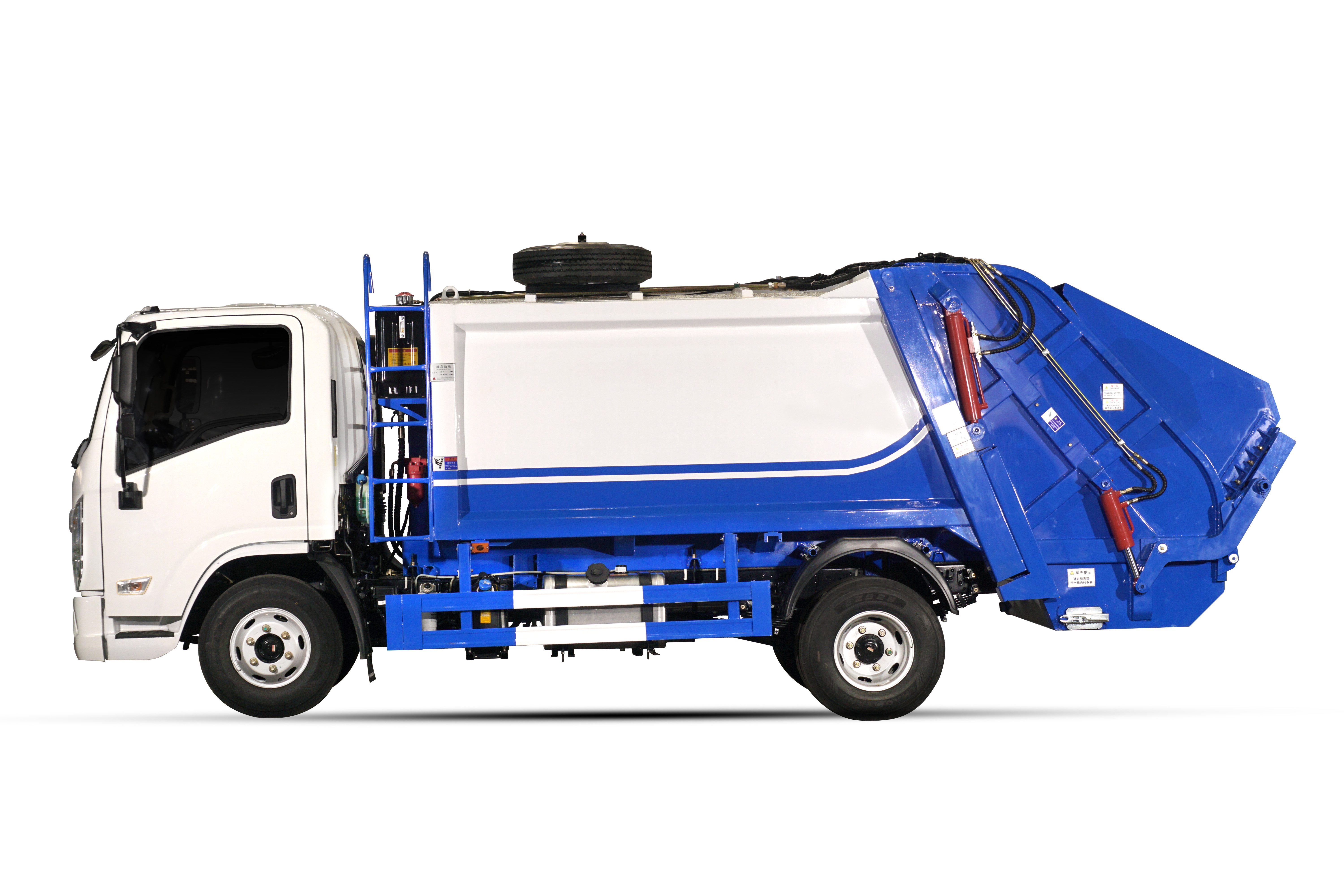

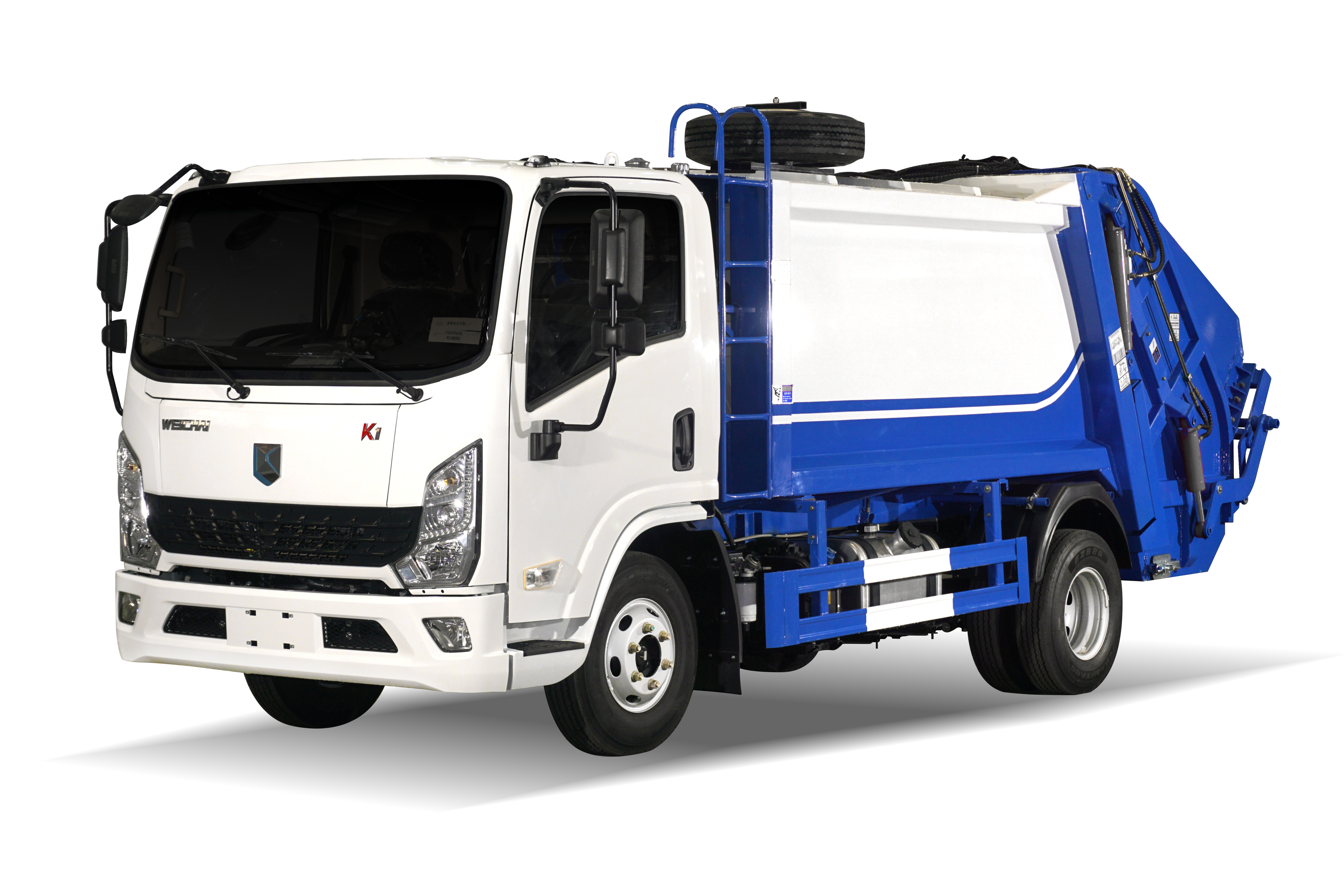

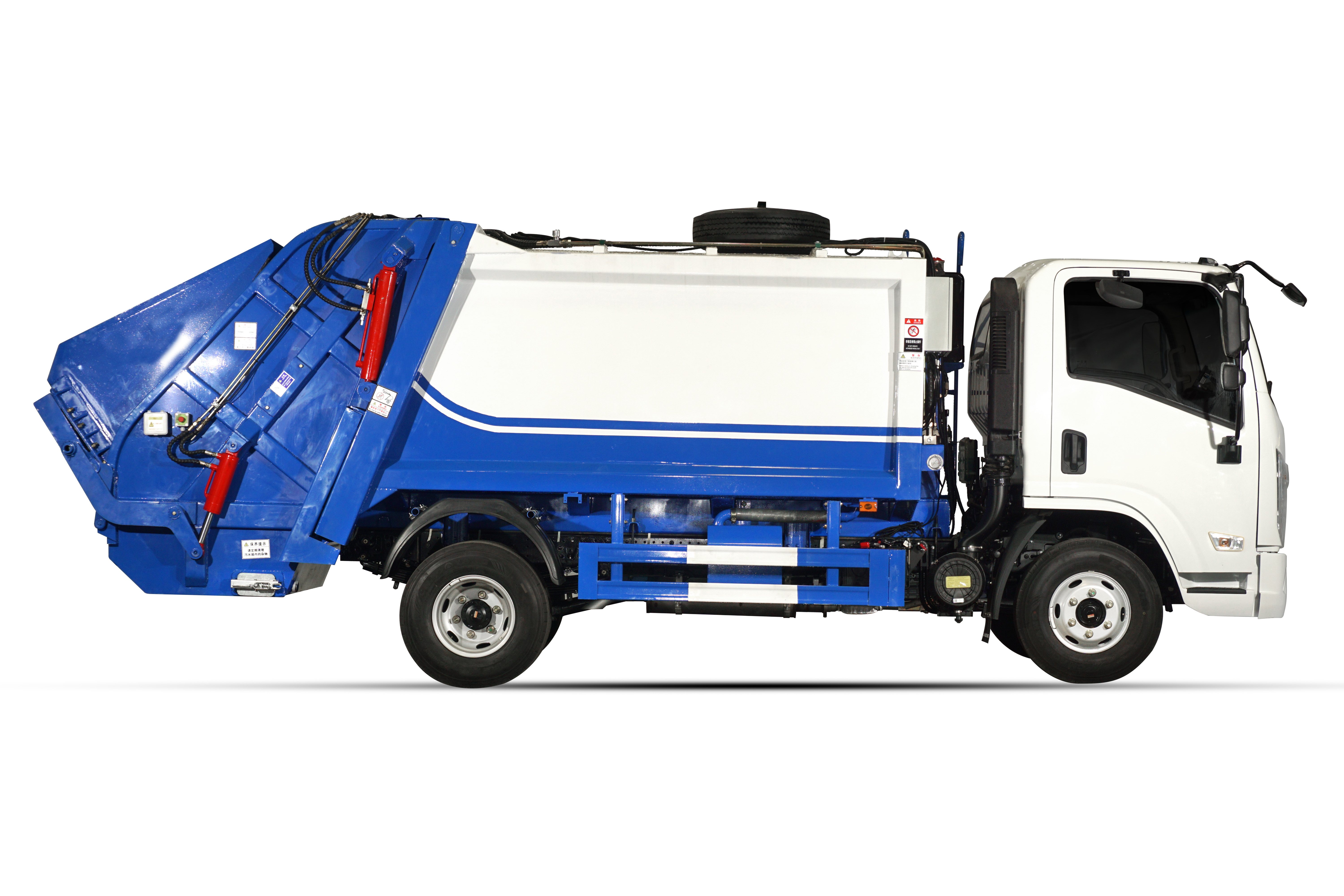

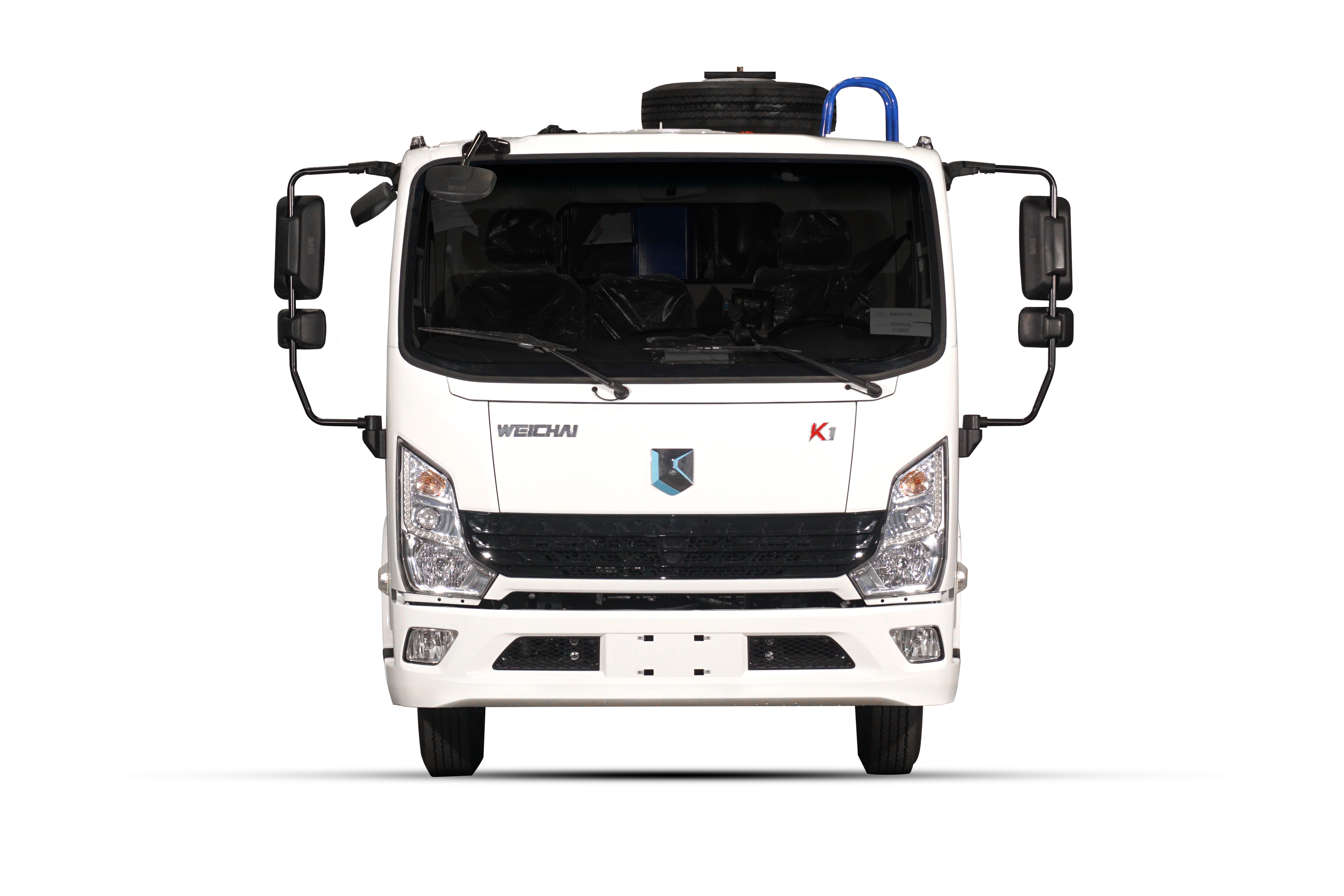

WEICHAI GARBAGE COMPACTOR 6CBM

SPECIFICATION

DIMENSIONS Wheelbase (mm) 3300
Length (mm) 5995
Width (mm) 1995(without rear mirror)
Height (mm) 2420
LOADING CAPACITY Curb Weight (kg) 4000
Loading capacity of front axle (Kg) 2000(HANDE)
Loading capacity of rear axle (Kg) 5000(HANDE)
Payload (Kg) 8000
Gross vehicle weight (Kg) 7500
CARGO BODY 6 CBM
CAB Persons in cab (persons) 3
ENGINE Model WP3NQ150E50
Type In-line, four-cylinder,four-stroke, turbocharging,
Intercooling, Diesel Engine, Electronic-controlled
high-pressure common rail, 16 engine valves
Displacement (L) 2.97
Max power (Kw/rpm) 110Kw/3000r/min
Max torque (Nm/rpm) 430 (1400-2400)
Brand WEICHAI
Emission Euro 5
CLUTCH Type Dry type, Diaphragm spring
Plate diameter ⌀ 300
TRANSMISSION C6J45TB(FAST)
6MT
BRAKING SYSTEM Service brake Double circuit pneumatic brake
with front drum and rear drum
Parking brake Spring energy storage air brake
SUSPENSION Front suspension/Leaf spring number Vertical steel plate spring + two way
cylindrical shock absorber. 3
Rear suspension/Leaf spring number Vertical steel plate spring + two way
cylindrical shock absorber. 5+3
REAR AXLE Rated ratio 4.875
TYRE Model 7.50R16LT
Quantity 6+1
POWER STEERING SYSTEM Hydraulic
FUEL TANK Cubage and material 120L plastic
ELECTRICAL SYSTEM Rated voltage 24V
CONFIGURATION A/C ⬤
Comfort fabric seat ⬤
Eletric door and window ⬤
segment screen combination instrument ⬤
7-inch color LCD combination instrument ⬤
Rear view mirror 〇
ABS ⬤
Cab manual tilt ⬤
Mp3+Radio+USB ⬤
Standard steering wheel ⬤
PTO ⬤
