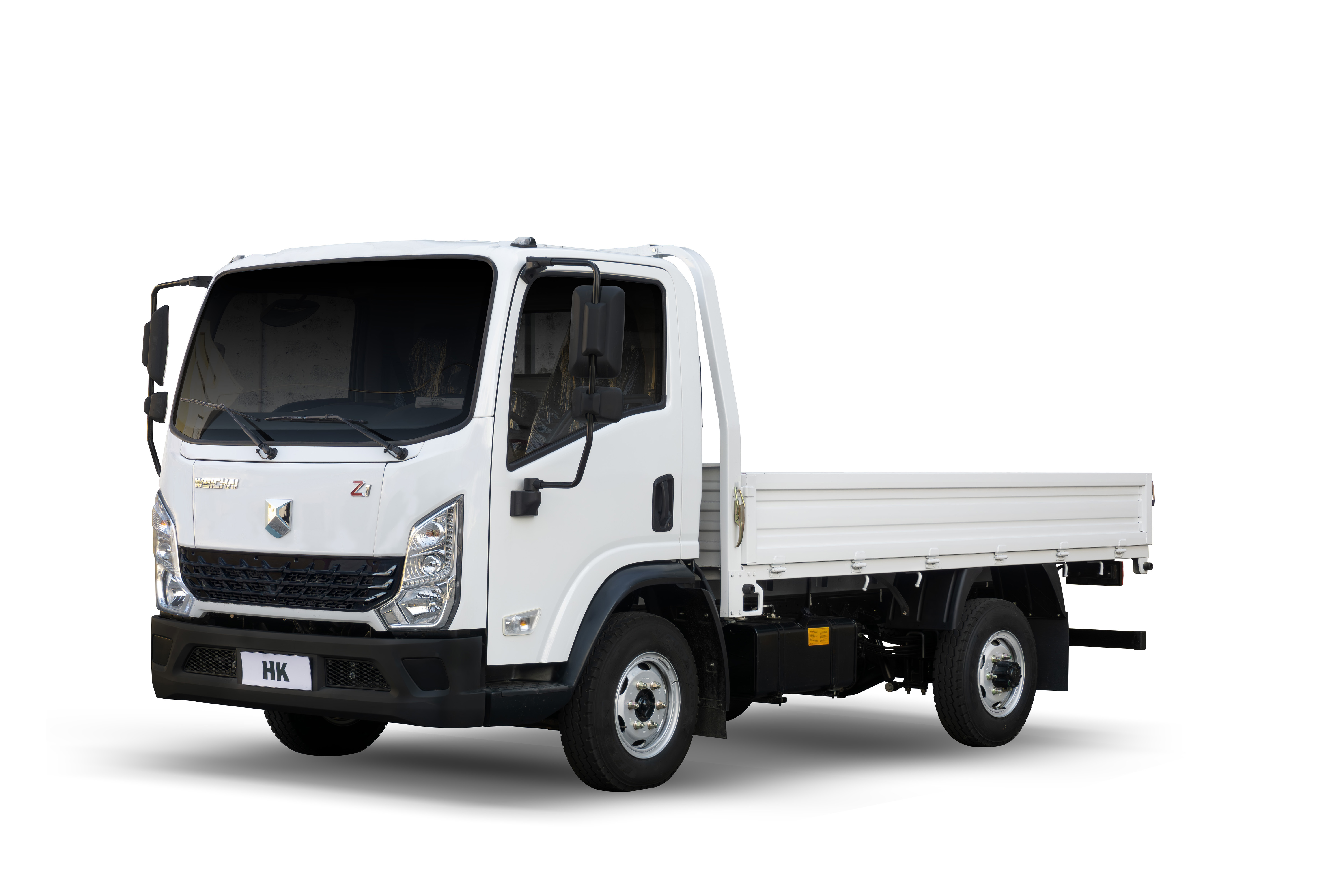

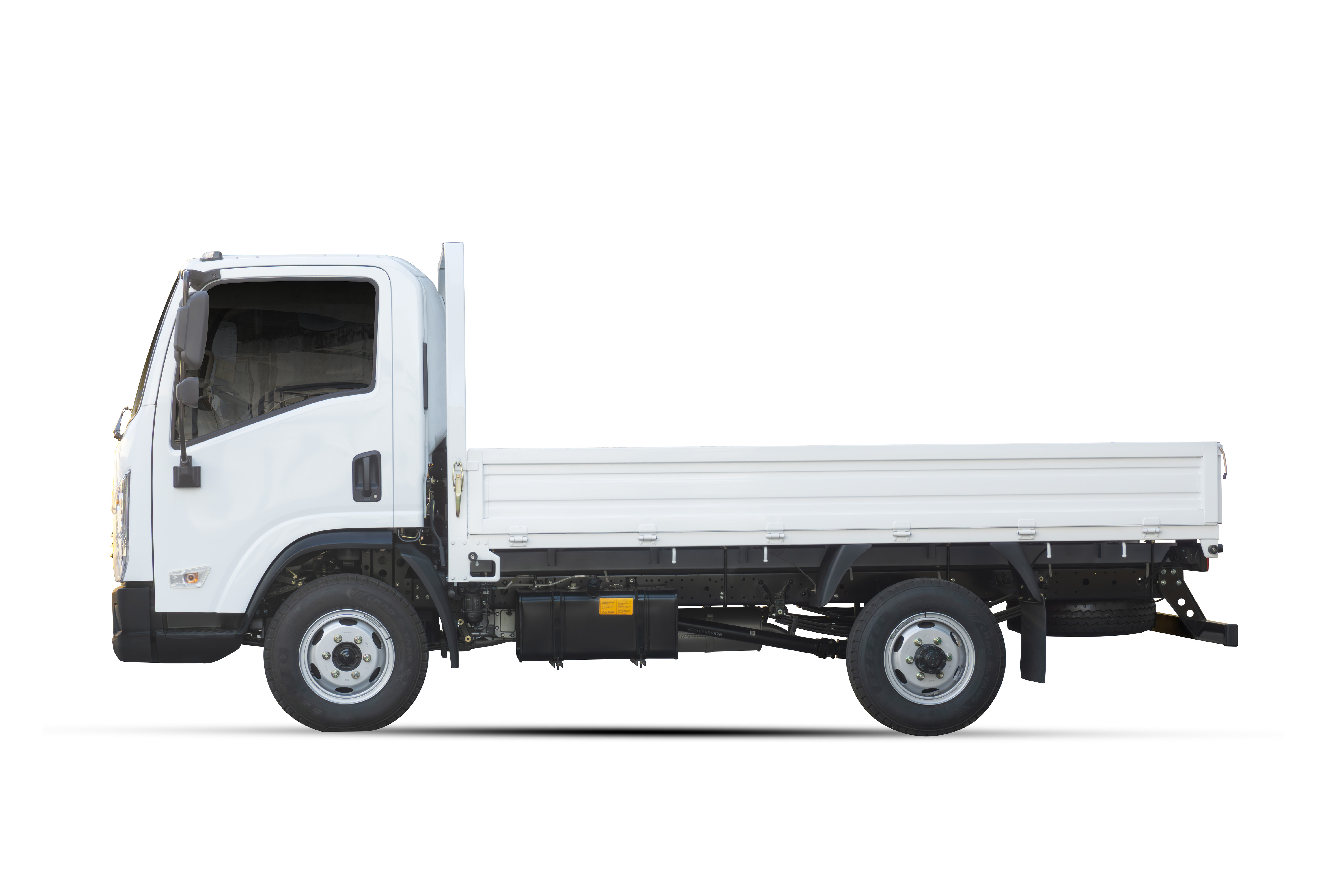

WEICHAI HK412 DROPSIDE 12FT 4W EURO 4

SPECIFICATION

DIMENSION Wheelbase(mm) 2800
Length(mm) 5400
Width(mm) 1860(without rear mirror)
Height 2300
LOADING CAPACITY Curb weight(kg) 2100
Loading Capacity of Front Axle(kg) 1500(YIHE)
Loading Capacity of Rear Axle(kg) 3500(QINGTE)
Payload(kg) 3400
Gross Vehicle Weight(kg) 5500
CARGO BOX DIMENSION Drop Side(mm) 3650*1900*1900
CAB Persons in Cab(Persons) 3
ENGINE Model WP2.3Q110E30
Type In-line, Four-cylinder,Four stroke,
Turbocharging, Intercooling, Diesel
Engine, Electronic-controlled
High-Pressure Common Rail, 8 engine
valves
Displacement(L) 2.29
Max Power(kw/rpm) 81Kw/3200r/min
Max Torque(Nm/rpm) 280 (1600-2400)
Brand WEICHAI
Emission Euro 4
CLUTCH Type Dry Type, Diaphragm Spring
Plate Diameter 275
TRANSMISSION 5TR34(ZHUCHI)
5MT
BRAKING SYSTEM Service Brake Double Circuit Pneumatic Brake with
Front Drum and Rear Drum
Parking Brake Spring Energy Storage Hydraulic Brake
SUSPENSION Front Suspension/Leaf Spring Number Vertical Steel Plate Spring +
Two Way Cylindrical Shock Absorber, 3
Rear Suspension/Leaf Spring Number Vertical Steel Plate Spring +
Two Way Cylindrical Shock Absorber, 3+2
REAR AXLE Rated Ratio 4.875/5.125
TIRES Model 7.00R16LT
Quantity 4+1
POWER STEERING SYSTEM Hydraulic
FUEL TANK Cubage And Material 80L Iron
ELECTRICAL SYSTEM Rated Voltage 24V
CONFIGURATION A/C ⬤
Comfort Fabric Seat ⬤
Electric Door and Window ⬤
Segment Screen Combination Instrument ⬤
7-inch Color LCD Combination Instrument 〇
Rearview Mirror ⬤
ABS ⬤
Cab Manual Tilt ⬤
MP3+Radio+USB ⬤
Standard Steering Wheel ⬤
Daytime Running Light 〇
Deflector 〇
Basic Configuration
Half-inclusive cab unpainted fender and bumper, comfortable auto seat, regular rerview mirror,
segment code screen combination instrument, automatic adjustment arm for brake clearance.
