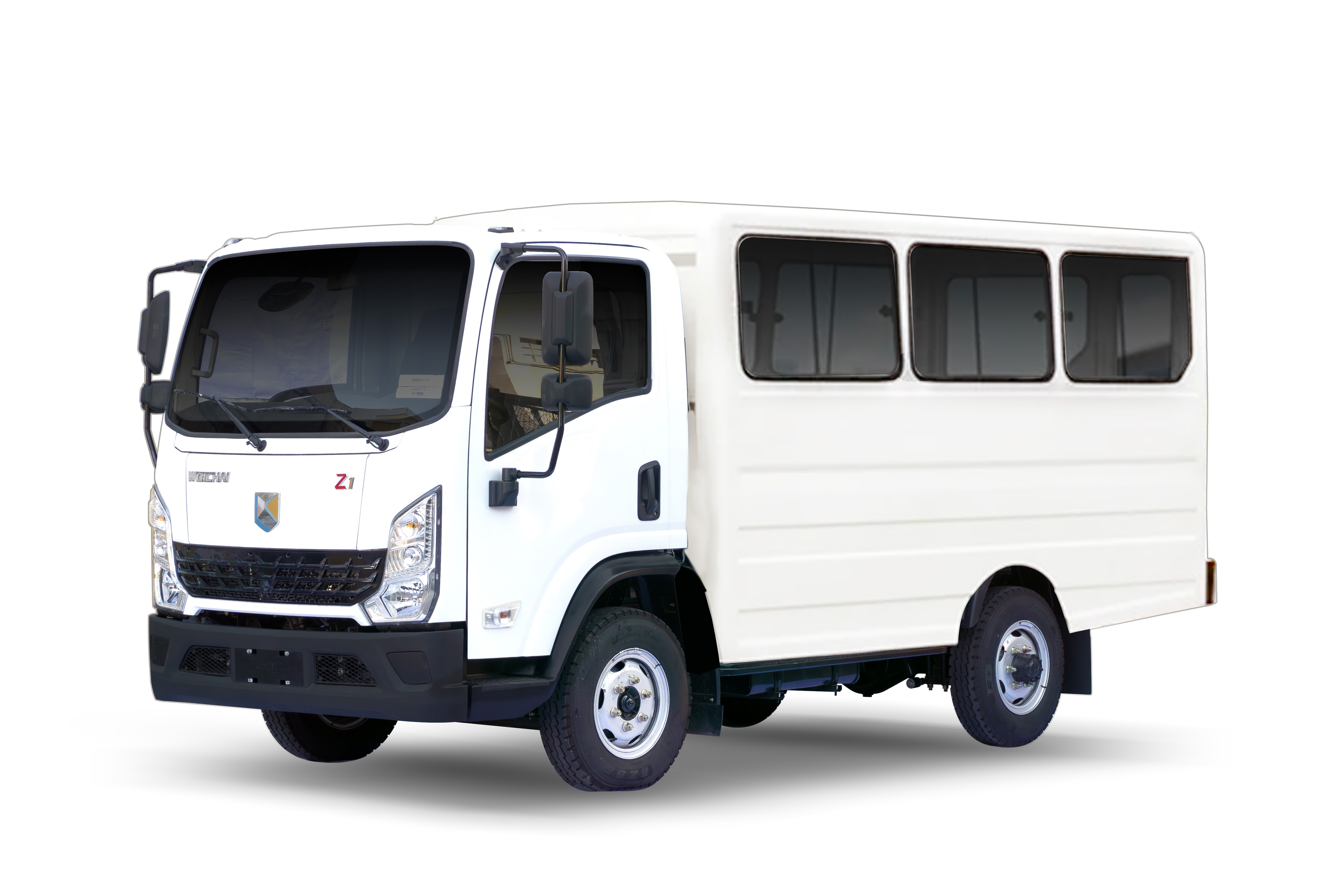

WEICHAI HK412 FB

SPECIFICATION

Model: Weichai HK412 FB
Body Dimension( L x W x H ): 3,650 x 1,900 x 650mm
Engine Model: WP2.3Q110E50 (EURO V)
HP: 110
Emission Standard: Euro 4
Displacement: 2.289L
Max Power Output: 81Kw
Max. Torque (N.m): 280N.m
Brand & Model: Weichai Fast 5TR34
Fuel Type: DIESEL
Front leaf Spring: Dependent suspension, steel plate spring (x3)
Rear leaf Spring: Dependent suspension, steel plate spring (3+2)
Brake System: Hydraulic brake/front & rear drum brake/ABS
Steering System: Hydraulic power steering
Size: 7.00R16LT 14PR (rear dual tire)
Cab and chassis dimension ( L x W x H): 5450 x 1860 x 2300mm
Wheel Base (mm): 2800mm
GVW (kg): 6000kg
Max Loading (kg): 4000kg
Curb Weight: 2000kg
Seating Capacity: 2 + 1
Fuel Tank Capacity: 80L Iron Fuel Tank
Quantity: 6 + 1
In-Vehicle Entertainment (Cabin): AM/FM(MP3)
with Air Conditioning System
Power Window
Central Lock
Remote keyless Entry
Maintenance Free battery •
USB Power Port •
Electric Horn •
Spare Tire •
Reserved PTO left •
Basic Configuration
Half-inclusive cab unpainted fender and bumper, comfortable auto seat, regular rerview mirror,
segment code screen combination instrument, automatic adjustment arm for brake clearance.
