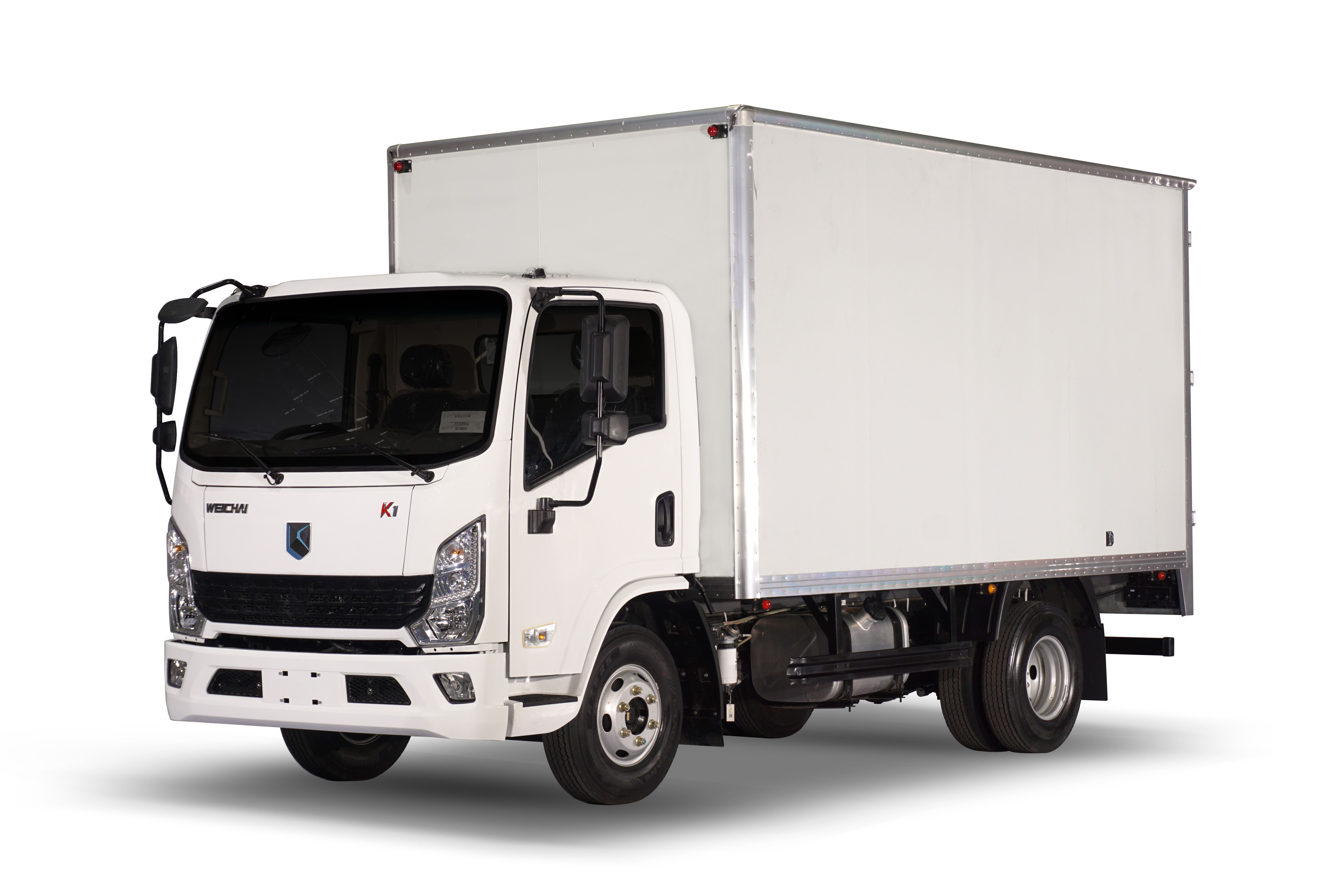

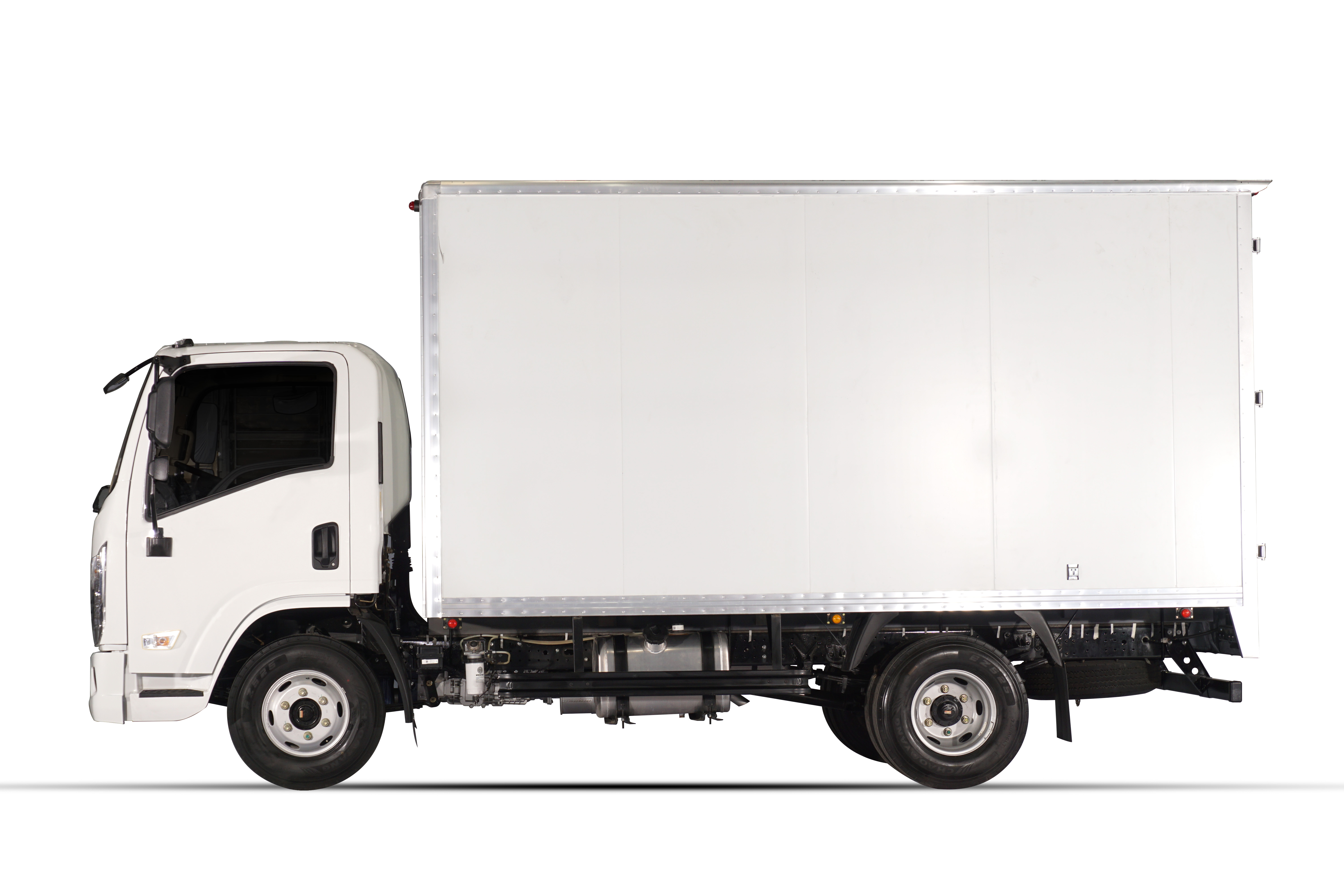

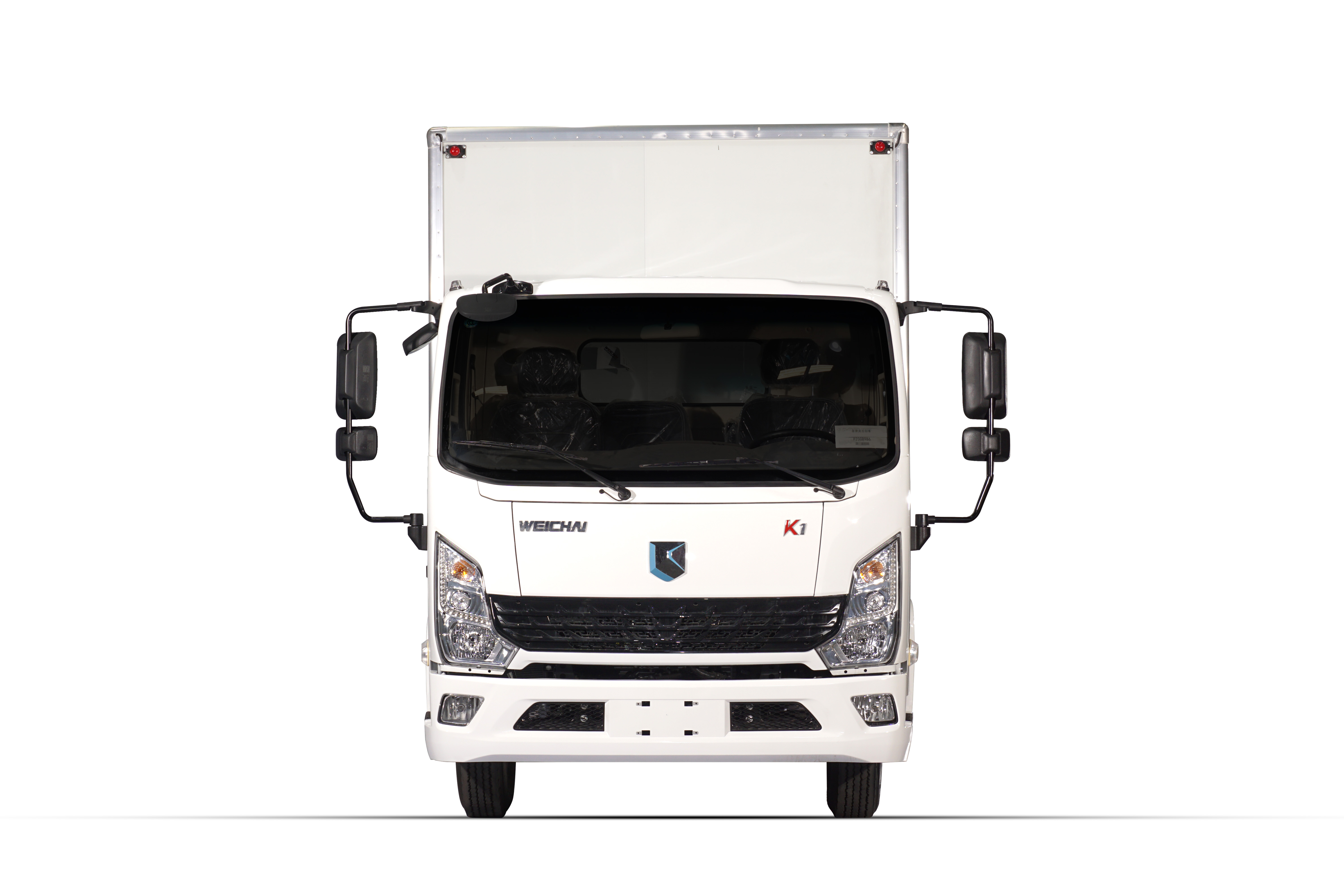

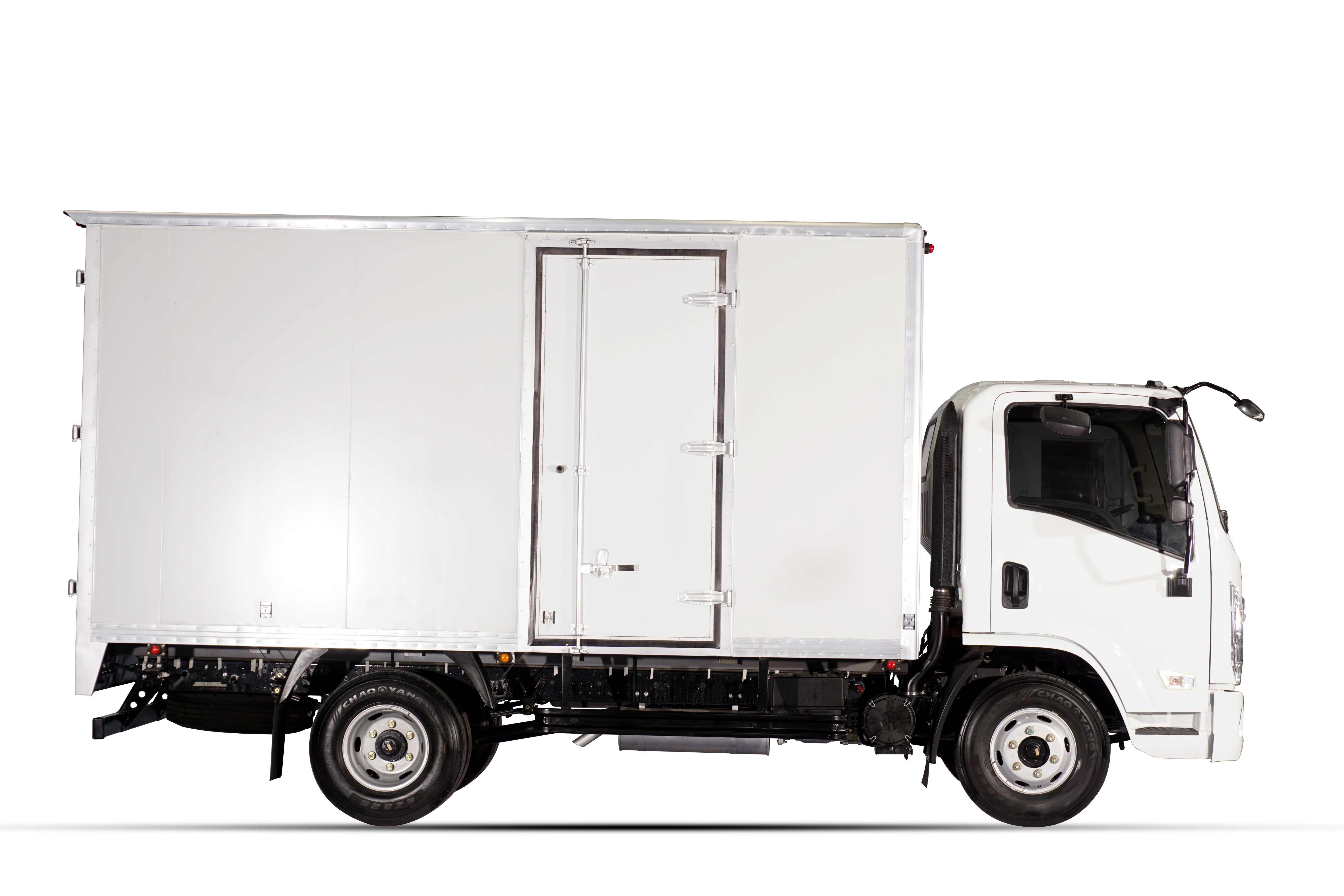

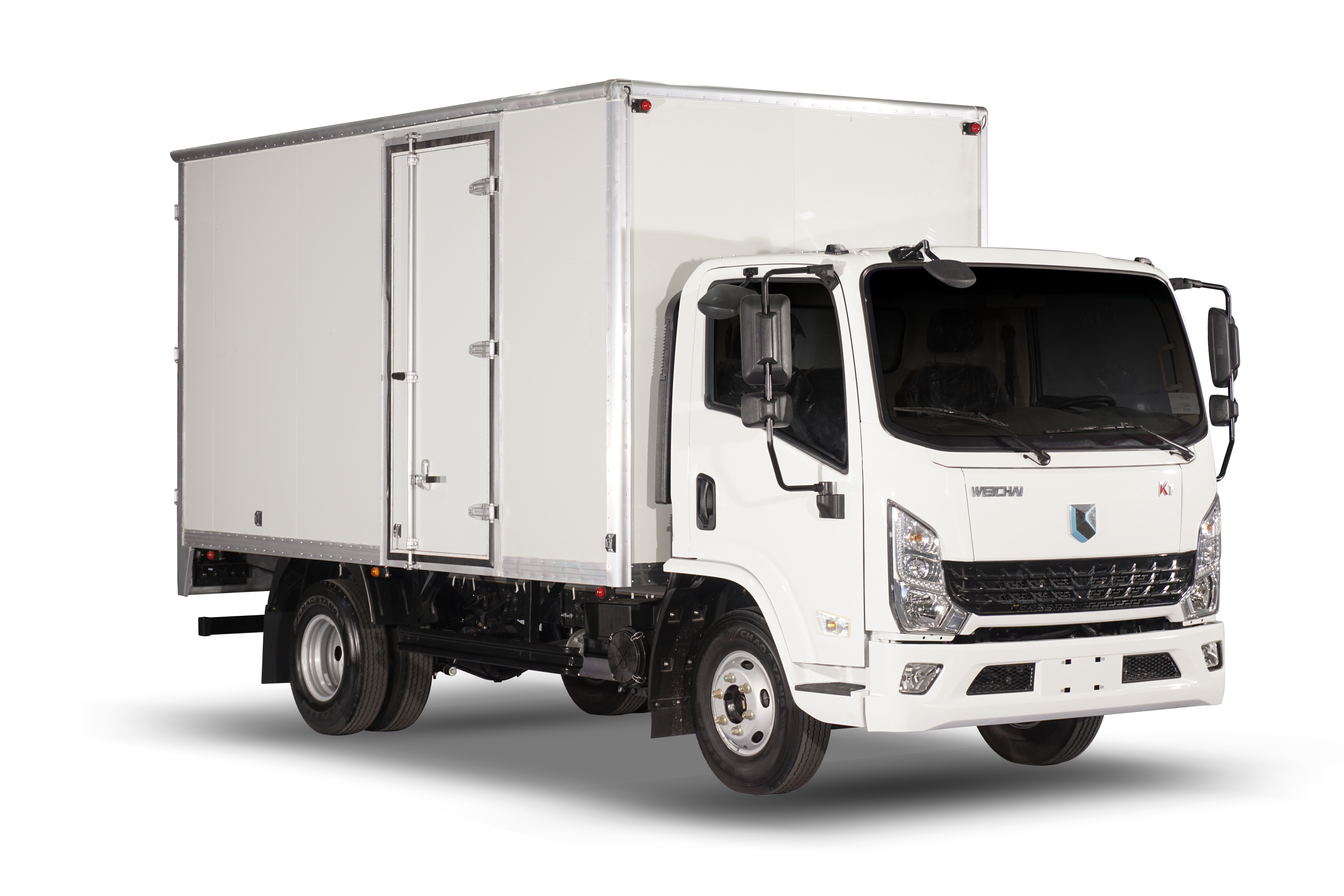

WEICHAI HK614 CLOSED VAN 14FT 6W EURO 4

SPECIFICATION

Model: Weichai HK614 Aluminum Van 14ft
Body Dimension( L x W x H ): 4,180 x 2,100 x 2,100mm
Engine Model: WP2.3NQ130E30
HP: 130
Emission Standard: Euro 4
Displacement: 2.289L
Max Power Output: 96kw/3200rpm
Max. Torque (N.m): 380 N.m (1600-2400)
Transmission: Weichai Fast C6J45TB / 6MT
Fuel Type: DIESEL
Front leaf Spring: Vertical Steel Plate Spring (x3) Two Way Cylindrical Shock Absorber
Rear leaf Spring: Vertical Steel Plate Spring (5+3) Two Way Cylindrical Shock Absorber
Brake System: Double Circuit Pheumatic Break with Front Drum and Rear Drum with ABS
Steering System: Hydraulic Power Steering
Tire Size: 7.50R16LT / 14PR (rear dual tires)
Cab and chassis dimension ( L x W x H): 5,995 x 1,995 x 2400mm
Wheel Base (mm): 3300mm
GVW (kg): 8000kg
Max Loading (kg): 6000kg
Curb Weight: 2000kg
Seating Capacity: 3
Fuel Tank Capacity: 120L aluminum alloy Fuel Tank
Quantity: 6 + 1
In-Vehicle Entertainment (Cabin): AM/FM(MP3)
Electrical System Rated Voltage 24V
Cabin Top Storage Box
With Air Conditioner
Power Window
Central Lock
USB Power Port
Remote Keyless Entry
Electric Horn
Air Horn
Maintenance Free battery •
Battery Main Switch •
USB Power Port •
Spare Tire •
Fog Lamps •
Daytime Running Light •
Reserved PTO left •
Basic Configuration
All-inclusive cab, comfortable auto seat, , regular rearview mirror,
7-inch color LED combination instrument, built-in aluminum alloy air reservoir, domestic brake valve,
energy storage spring parking system, automatic adjustment arm for brake clearance, daytime running lamp ,
and reserved power takeoff interface (left).
