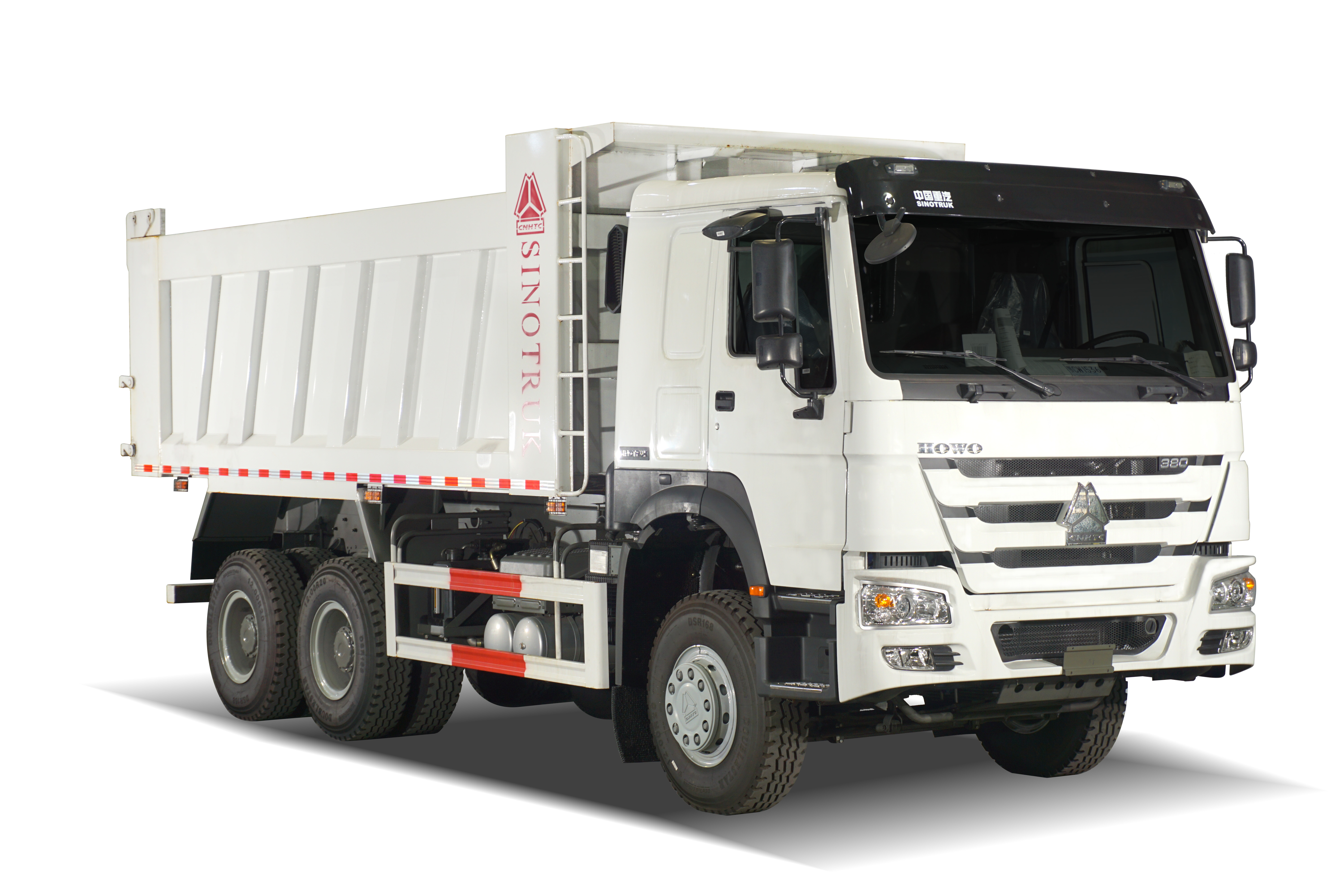

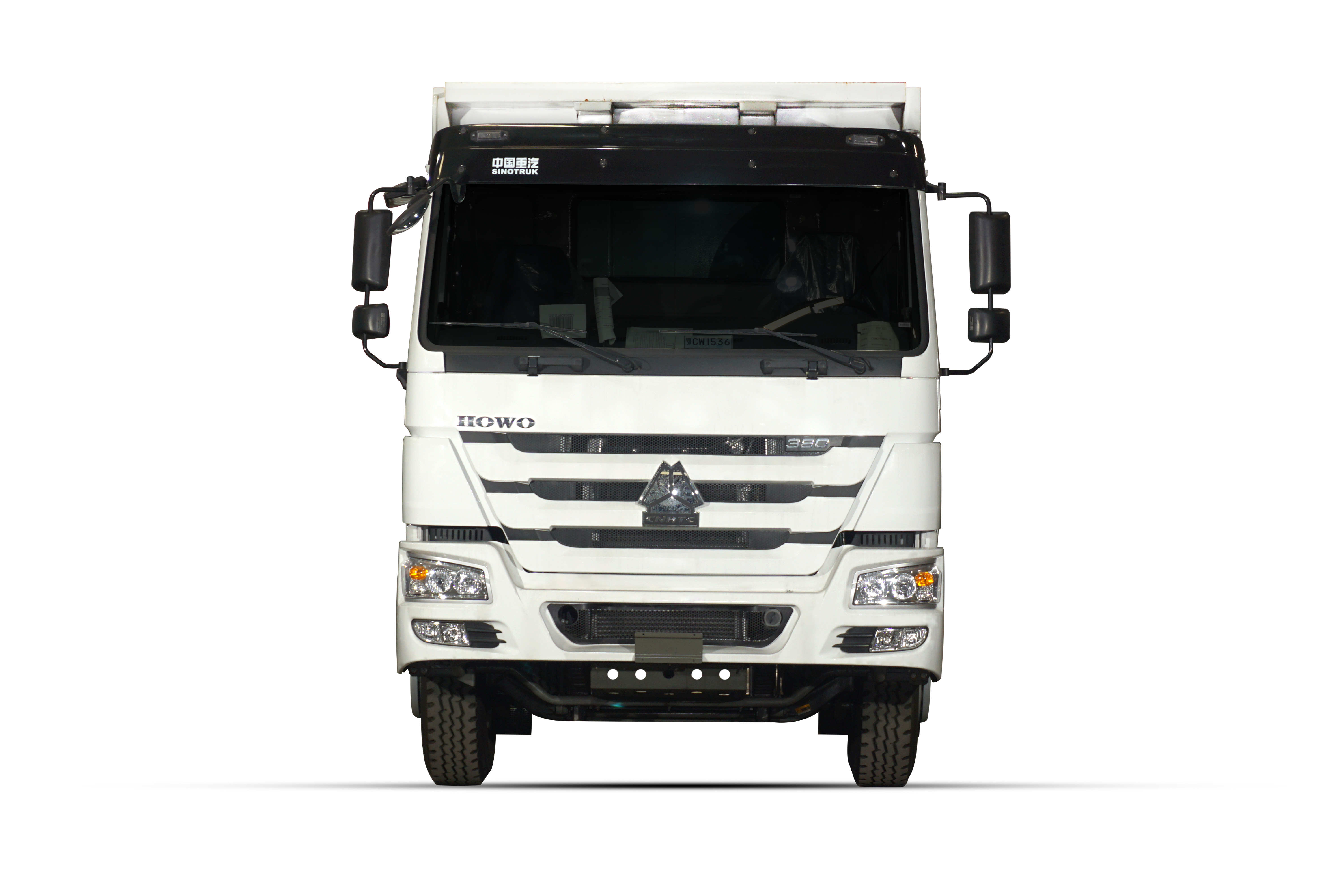

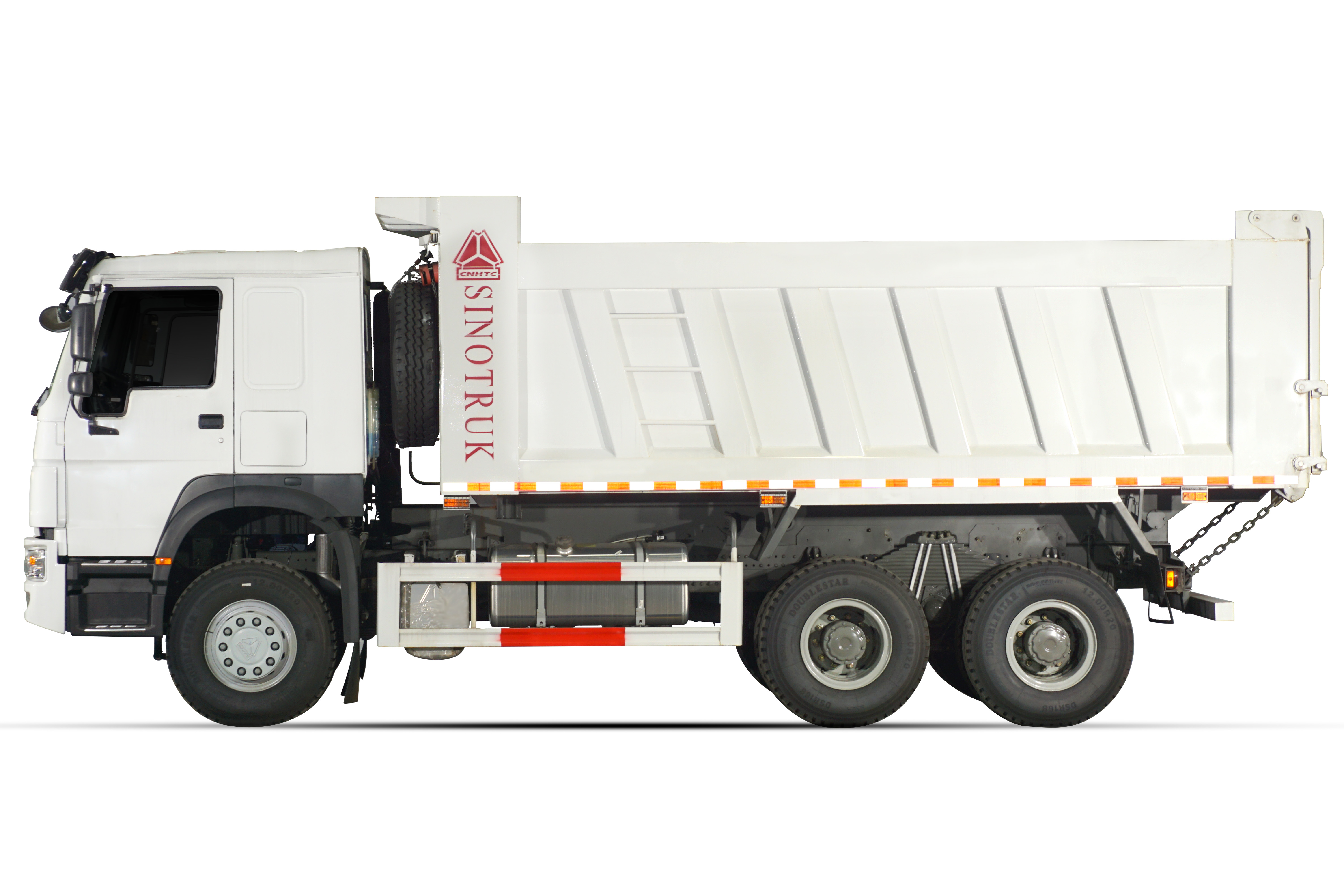

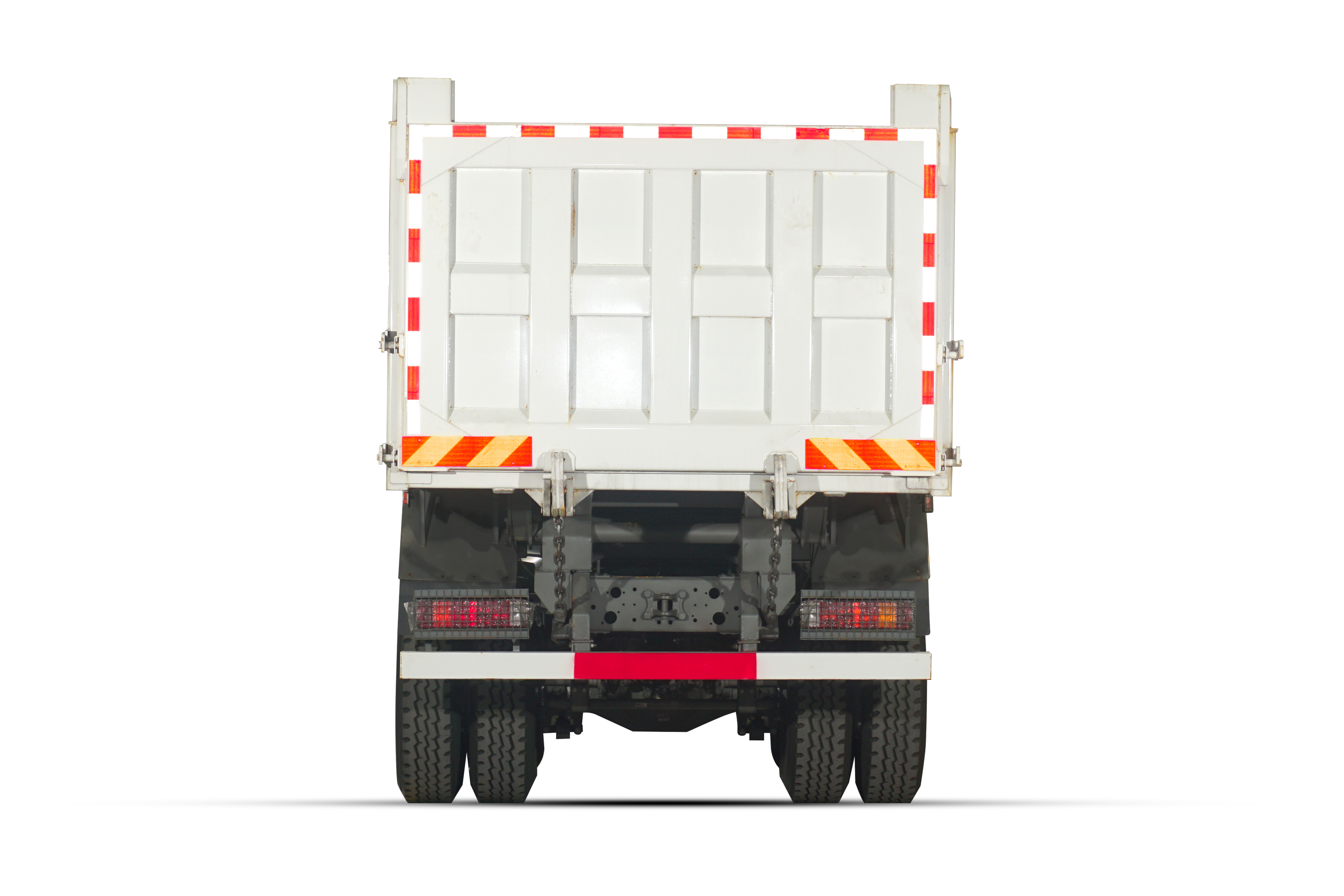

SINOTRUK EU2 HOWO 6X4 380HP DUMP TRUCK

SPECIFICATION

Representative vehicle model HOWO 6x4 Dumper
CABIN Model HW76Cab
Type Air condition, one bunk
ENGINE Model WP10.380e22 380hp Euro 2
Rated Power kw/rpm 280kw/2200rpm
Maximum torque Nm/rpm 1600N.m/1300-1500rpm
Displacement L 9.7L
Type Six cylinders, inline, exhaust valve brake,
turbo-charger and intercooling
Steering Bosch steering
Transmission HW19710 Ratio: 1.00-14.28 torque: 1900N.m with PTO
Front axle VGD95, 9.5 tons, drum type
Rear Drive axle MCX16ZG drum type, 16 tons, 5.451 speed ratio
Suspension Front and rear reinforce leaf spring suspension 10/12
Braking system Service brake: dual-circuit air pressure brake;
parking brake: spring storage energy
without air, auxilliary brake:
EVB+Engine exhaust
Electrical system Can bus control, voltage: 24V; battery: 12V165Ah 2 pieces
Tire 12.00R20, with spare tire, 18PR. with mine block pattern
Tank volume L 300L
Kerb weight (kg) 15000kg
Gross Mass (kg) 25000kg
External dimensions (L x W x H)mm 8600*2500*3360
Wheelbase mm 3800mm
Front/rear overhang mm 1500/1870
Wheel track(front/rear)mm 2022/1830
Approach/departure angle 19/23
Max speed 70km/h
Others Reverse buzzer, Intercooler protection
device, high position bumper
box dimension 5600*2300*1500mm bottom 10mm side 6mm,
middle-top hydraulic cylinder
